Phoenix Blocks - PHNX 3009118 UKH 50
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180916446
Catalog Number - 3009118
Color - Gray
Country of Origin - India
Current - 150 Amp
Packaging
1 ea
EAN
Part #
164808
Catalog #
3009118
Commercial reference
3009118
12-Digit UPC:
179180916446
Catalog Number:
3009118
Color:
Gray
Country of Origin:
India
Current:
150 Amp
ERP_productname:
PHNX 3009118 UKH 50
Family Brand Name:
Phoenix Products
Heights:
76 mm
Length:
70.5 mm
Widths:
20 mm
SoneparProductId:
SKU_US_71913762

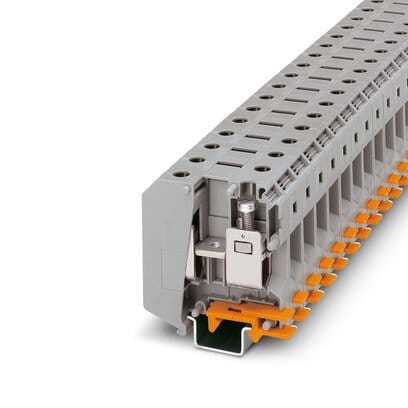

High-current terminal block, nom. voltage: 1000 V, nominal current: 150 A, connection method: Screw connection, Rated cross section: 50 mm., cross section: 16 mm. - 70 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, NS 35/15-2,3, color: gray Features: Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base ; Low contact resistance of the contact surface due to ribbing; Screw locking by means of spring-loaded elements in the clamping part - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; LR; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; CSA; UL Recognized; cUL Recognized
