Phoenix Blocks - PHNX 3010013 UKH 95
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180918358
Amperage - 232 Amp
Catalog Number - 3010013
Color - Gray
Conductor Size - 25 - 95 mm., 35 - 95 mm.
Packaging
1 ea
EAN
Part #
218097
Catalog #
3010013
Commercial reference
3010013
12-Digit UPC:
179180918358
Amperage:
232 Amp
Catalog Number:
3010013
Color:
Gray
Conductor Size:
25 - 95 mm., 35 - 95 mm.
Country of Origin:
India
ERP_productname:
PHNX 3010013 UKH 95
Family Brand Name:
Phoenix
Heights:
90 mm
Length:
83 mm
Mounting Type:
NS 35/15, NS 32 DIN Rail
Torque Rating:
15 - 20 N-m
Type:
High-Current
Voltage:
1000 Volt
Widths:
25 mm
SoneparProductId:
SKU_US_73208708

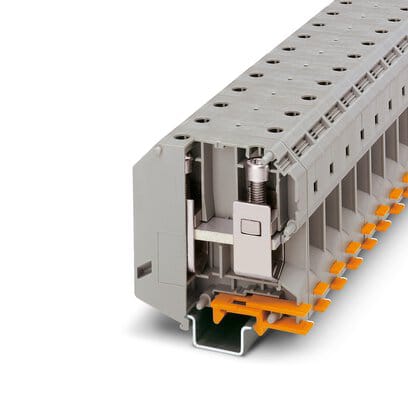

High-current terminal block, Screws with hexagonal socket, nom. voltage: 1000 V, nominal current: 232 A, connection method: Screw connection, Rated cross section: 95 mm., cross section: 25 mm. - 95 mm., mounting type: NS 35/15, NS 32, color: gray Features: Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base ; Low contact resistance of the contact surface due to ribbing; Screw locking by means of spring-loaded elements in the clamping part - Approvals: cULus Recognized; CCA; EAC Ex; EAC; LR; IECEx; PRS; DNV GL; ATEX; RS; KEMA-KEUR; CSA; UL Recognized; cUL Recognized
