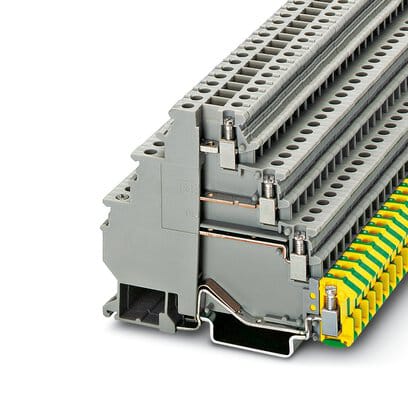

Phoenix Blocks - PHNX 3011041 DLK 2 5-PE

Motor terminal block, four-level, with PE foot, cross section: 0.2 mm. - 4 mm., AWG: 24 - 12, connection method: screw connection, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15 Features: In order to reduce wiring effort, the DLKB 2,5-PE can also be bridged in the middle and lower levels using EB...-DIK insertion bridges with up to 80 positions; The DLK 2,5-PE and DLKB 2,5-PE three-conductor terminal blocks are particularly suitable for wiring three-phase loads due to their design featuring three feed-through levels plus PE connection - Approvals: EAC; cULus Recognized; CSA; UL Recognized; cUL Recognized
