Phoenix Blocks - PHNX 3031047 ZPV 1.5/2.5 (8/1)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181695722
Catalog Number - 3031047
Color - Gray
Country of Origin - Turkey
ERP_productname - PHNX 3031047 ZPV 1.5/2.5 (8/1)
Packaging
1 ea
EAN
Part #
151929
Catalog #
3031047
Commercial reference
3031047
12-Digit UPC:
179181695722
Catalog Number:
3031047
Color:
Gray
Country of Origin:
Turkey
ERP_productname:
PHNX 3031047 ZPV 1.5/2.5 (8/1)
Family Brand Name:
Phoenix Contact
Length:
141 mm
Mounting Type:
NS 35/7
Widths:
5.2 mm
SoneparProductId:
SKU_US_315969548

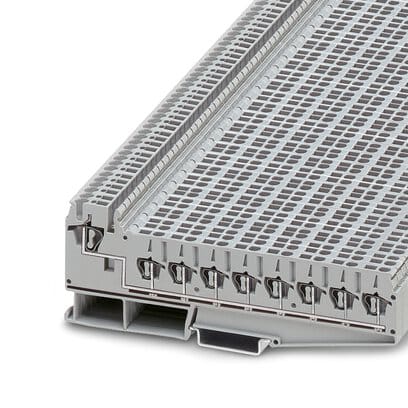

Potential distributors, nom. voltage: 500 V, nominal current: 24 A, connection method: Spring-cage connection, 1st level connection left, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., connection method: Spring-cage connection, 1st level connection right, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 2.5 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: The operating voltage is supplied via a 2.5 mm² spring-cage connection and distributed using eight 1.5 mm² connections; Actuators and active initiators are simply and clearly supplied with operating voltage; They are mainly used in small control cabinets with high-performance controllers - Approvals: EAC; cULus Recognized; UL Recognized; cUL Recognized
