Phoenix Blocks - PHNX 3031076
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181866160
Amperage - 17.5 Amp
Catalog Number - 3031076
Color - Gray
Conductor Size - 0.08 - 1.5 mm.
Packaging
1 ea
EAN
Part #
194719
Catalog #
3031076
Commercial reference
3031076
12-Digit UPC:
179181866160
Amperage:
17.5 Amp
Catalog Number:
3031076
Color:
Gray
Conductor Size:
0.08 - 1.5 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3031076
Family Brand Name:
Phoenix
Length:
48.5 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Number of Poles:
2 Pole
Type:
Feed-Through
Voltage:
500 Volt Nominal, 6 kV Surge
Widths:
4.2 mm
SoneparProductId:
SKU_US_73332126

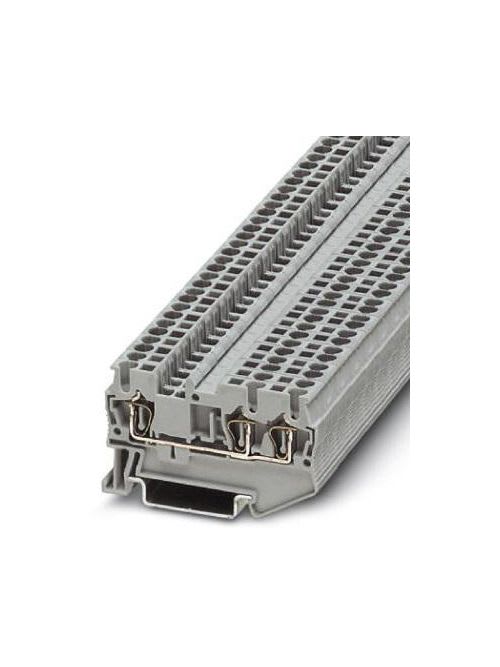

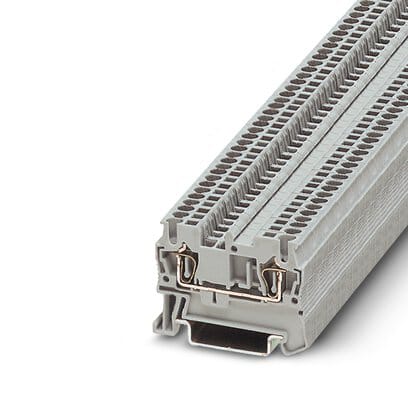

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.08 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space; The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories; The large wiring space enables the use of conductors with ferrules and plastic collars within the nominal cross section; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; LR; NK; IECEE CB Scheme; DNV GL; ATEX; KR; CSA; UL Recognized; cUL Recognized
