Phoenix Blocks - PHNX 3031157 STTB 1.5
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181867082
Amperage - 17.5 Amp
Catalog Number - 3031157
Color - Gray
Conductor Size - 0.08 - 1.5 mm.
Packaging
1 ea
EAN
Part #
160569
Catalog #
3031157
Commercial reference
3031157
12-Digit UPC:
179181867082
Amperage:
17.5 Amp
Catalog Number:
3031157
Color:
Gray
Conductor Size:
0.08 - 1.5 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3031157 STTB 1.5
Family Brand Name:
Phoenix
Length:
67.5 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Number of Poles:
4 Pole
Type:
2-Level
Voltage:
500 Volt Nominal, 6 kV Surge
Widths:
4.2 mm
SoneparProductId:
SKU_US_71752488

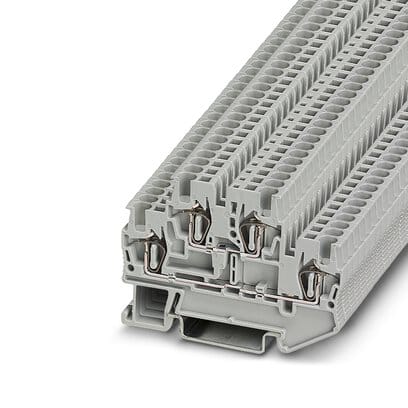

Double-level spring-cage terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 1.5 mm., cross section: 0.08 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Compact design for maximum space savings; Tested for railway applications; Connect the levels using FBS ...-PV bridges - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
