Phoenix Blocks - PHNX 3031186 ST 1.5 QUATTRO
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181866788
Amperage - 17.5 Amp
Catalog Number - 3031186
Color - Gray
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
160561
Catalog #
3031186
Commercial reference
3031186
12-Digit UPC:
179181866788
Amperage:
17.5 Amp
Catalog Number:
3031186
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3031186 ST 1.5 QUATTRO
Family Brand Name:
Phoenix Contact
Length:
72 mm
Number of Poles:
2 Pole
Voltage:
500 Volt Nominal, 6 kV Surge
Widths:
4.2 mm
SoneparProductId:
SKU_US_73983735

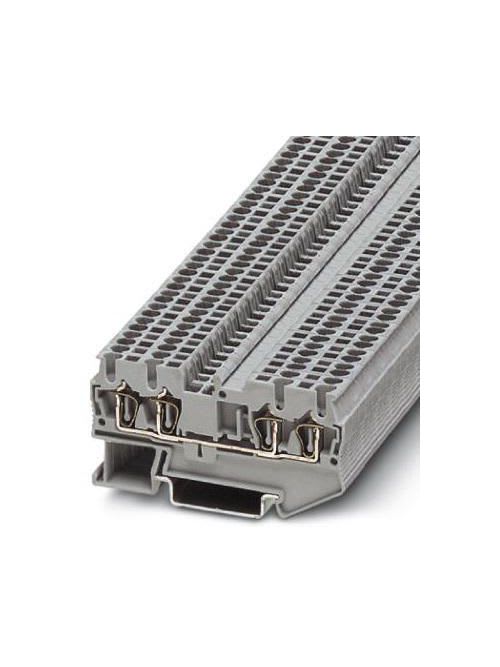

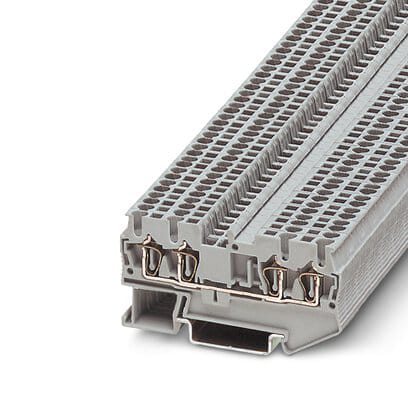

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.08 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Cross connection to any number of terminal blocks with the consistent FBS ... plug-in bridge system; Compact potential distributors, the double connection enables four conductors to be connected on one potential; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
