Phoenix Blocks - PHNX 3031270 STTB 2.5
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181868140
Amperage - 22 Amp
Catalog Number - 3031270
Color - Gray
Conductor Size - 0.08 - 4 mm., 0.08 - 2.5 mm.
Packaging
50 ea
EAN
Part #
123388
Catalog #
3031270
Commercial reference
3031270
12-Digit UPC:
179181868140
Amperage:
22 Amp
Catalog Number:
3031270
Color:
Gray
Conductor Size:
0.08 - 4 mm., 0.08 - 2.5 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3031270 STTB 2.5
Family Brand Name:
Phoenix
Length:
67.5 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Number of Poles:
4 Pole
Type:
2-Level
Voltage:
500 Volt Nominal, 6 kV Surge
Widths:
5.2 mm
SoneparProductId:
SKU_US_73575813

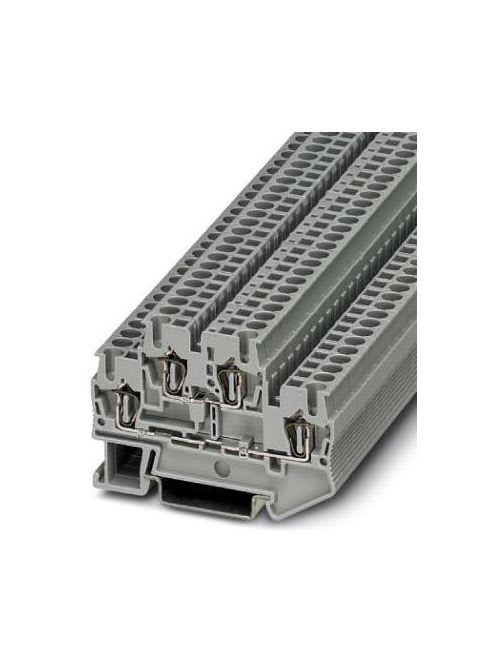

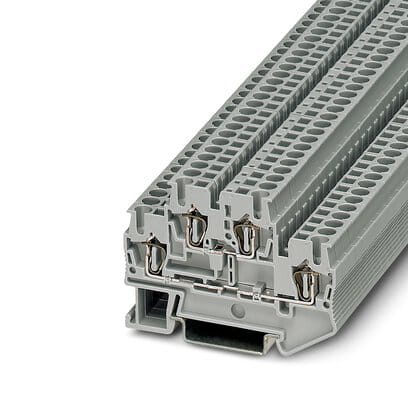

Double-level spring-cage terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Compact design for maximum space savings; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; KR; CSA; UL Recognized; cUL Recognized
