Phoenix Blocks - PHNX 3031319 ST 2.5 QUATTRO BU
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181867914
Amperage - 24 Amp
Catalog Number - 3031319
Country of Origin - Germany
ERP_productname - PHNX 3031319 ST 2.5 QUATTRO BU
Packaging
50 ea
EAN
Part #
123394
Catalog #
3031319
Commercial reference
3031319
12-Digit UPC:
179181867914
Amperage:
24 Amp
Catalog Number:
3031319
Country of Origin:
Germany
ERP_productname:
PHNX 3031319 ST 2.5 QUATTRO BU
Family Brand Name:
Marathon Special Products
Length:
72 mm
Number of Poles:
4 Pole
Voltage:
800 Volt Nominal, 8 kV Surge
Widths:
5.2 mm
SoneparProductId:
SKU_US_58652794

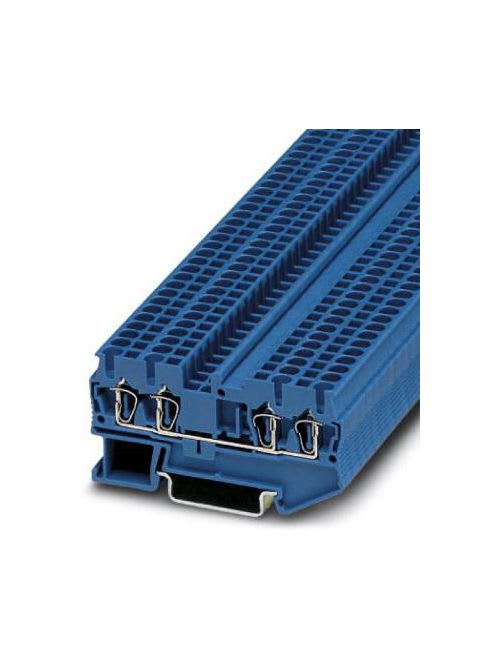

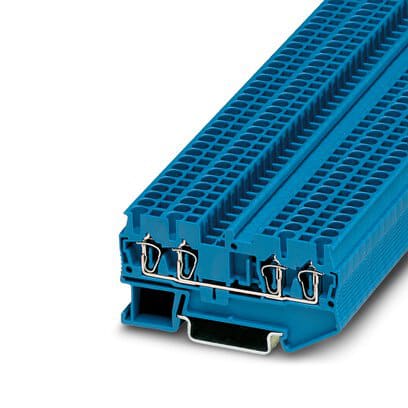

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, 1 level, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: Cross connection to any number of terminal blocks with the consistent FBS ... plug-in bridge system; Compact potential distributors, the double connection enables four conductors to be connected on one potential; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
