Phoenix Blocks - PHNX 3031377 ST-4 BU
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181868454
Amperage - 32 Amp
Catalog Number - 3031377
Color - Blue
Conductor Size - 0.08 - 6 mm., 0.08 - 4 mm.
Packaging
50 ea
EAN
Part #
189128
Catalog #
3031377
Commercial reference
3031377
12-Digit UPC:
179181868454
Amperage:
32 Amp
Catalog Number:
3031377
Color:
Blue
Conductor Size:
0.08 - 6 mm., 0.08 - 4 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3031377 ST-4 BU
Family Brand Name:
Phoenix
Length:
56 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Type:
Feed-Through
Voltage:
800 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_194840393

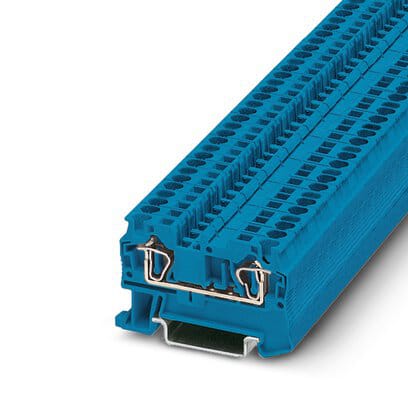

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, 1 level, Rated cross section: 4 mm., cross section: 0.08 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories; As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space; The large wiring space enables the use of conductors with ferrules and plastic collars within the nominal cross section; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
