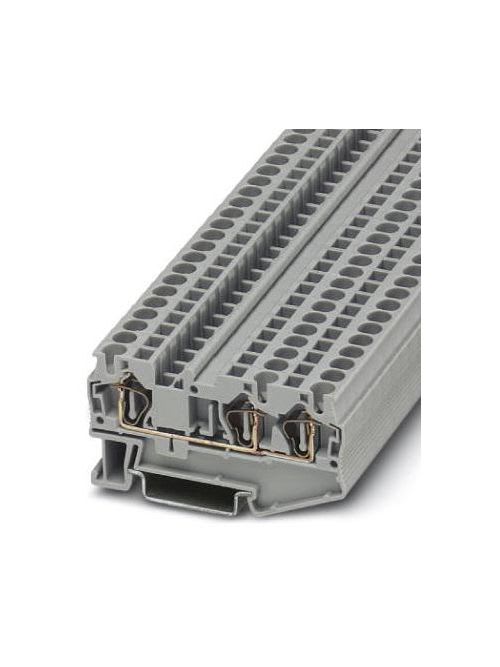

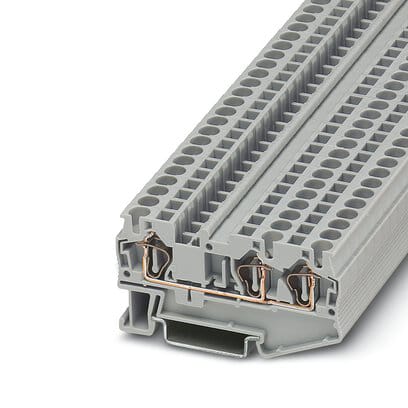

Phoenix Blocks - PHNX 3031393 ST-4 TWIN

Essential specifications

12-Digit UPC - 179181868690
Amperage - 32 Amp
Applications - Railway Industry, Machine Building, Plant Engineering, Process Industry Applications
Catalog Number - 3031393
Color - Gray

Packaging

1 ea

EAN

Part #

190244

Catalog #

3031393

Commercial reference

3031393

12-Digit UPC:

179181868690

Amperage:

32 Amp

Applications:

Railway Industry, Machine Building, Plant Engineering, Process Industry Applications

Catalog Number:

3031393

Color:

Gray

Country of Origin:

Germany

ERP_productname:

PHNX 3031393 ST-4 TWIN

Family Brand Name:

Phoenix

Length:

71.5 mm

Material:

Nylon, Polyamide

Number of Poles:

3 Pole

Type:

Single-Level, 3-Position

Voltage:

800 Volt Nominal, 8 kV Surge

Widths:

6.2 mm

Wire Size:

28-10 AWG

SoneparProductId:

SKU_US_73209805

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, Rated cross section: 4 mm., cross section: 0.08 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories; User-friendly implementation of all potential branching tasks; Tested for railway applications; Space-saving and practical multi-conductor connection without additional bridges - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
