Phoenix Blocks - PHNX 3031416 ST-4 TWIN PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181868836
Amperage - 40 Amp
Catalog Number - 3031416
Color - Green,Yellow
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
190259
Catalog #
3031416
Commercial reference
3031416
12-Digit UPC:
179181868836
Amperage:
40 Amp
Catalog Number:
3031416
Color:
Green,Yellow
Country of Origin:
Germany
ERP_productname:
PHNX 3031416 ST-4 TWIN PE
Family Brand Name:
Marathon Special Products
Length:
71.5 mm
Number of Poles:
3 Pole
Voltage:
8 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_71790678

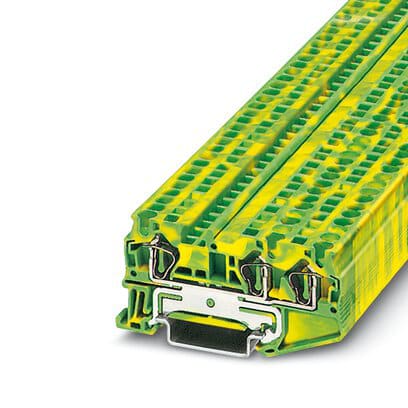

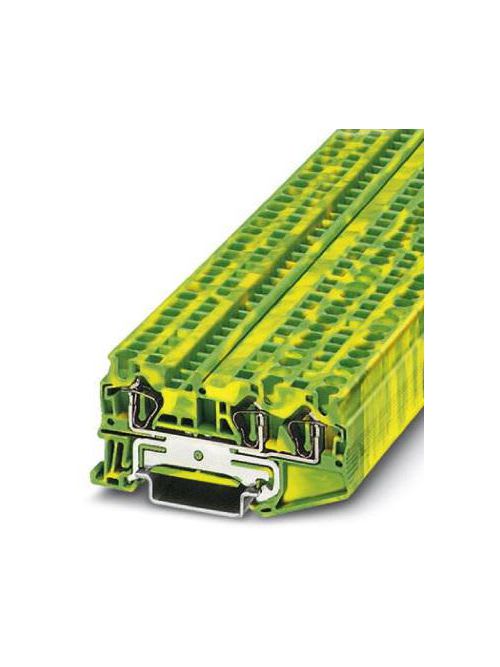

Ground modular terminal block, number of connections: 3, connection method: Spring-cage connection, 1 level, cross section: 0.08 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: Additional labeling options; Low contact resistance; Corrosion-free terminal points; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
