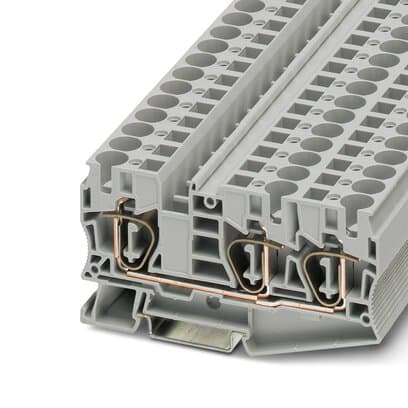

Phoenix Blocks - PHNX 3035288 ST 10-TWIN

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Spring-cage connection, 1 level, Rated cross section: 10 mm., cross section: 0.2 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The ST ...?TWIN three-conductor spring cage terminal blocks are a space-saving alternative to standard feed-through terminal blocks where potential distribution with conductor cross sections of 10 and 16 mm² is required; The flexible options for reducing bridging in the CLIPLINE complete system can be found in \"Accessories for the CLIPLINE complete modular terminal block system\; Tested for railway applications; Ideal as potential distributors in ring feeder systems; Terminal blocks with a nominal cross section of 2.5 or 4 mm² can be combined without additional wiring effort using the RB ST...(2,5/4) reducing bridge - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEE CB Scheme; CSA; UL Recognized; cUL Recognized
