Phoenix Blocks - PHNX 3036275
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179186107534
Catalog Number - 3036275
Country of Origin - Germany
ERP_productname - PHNX 3036275
Family Brand Name - Phoenix Products
Packaging
1 ea
EAN
Part #
194882
Catalog #
3036275
Commercial reference
3036275
12-Digit UPC:
179186107534
Catalog Number:
3036275
Country of Origin:
Germany
ERP_productname:
PHNX 3036275
Family Brand Name:
Phoenix Products
Length:
50.8 mm
Widths:
5.2 mm
SoneparProductId:
SKU_US_73891373

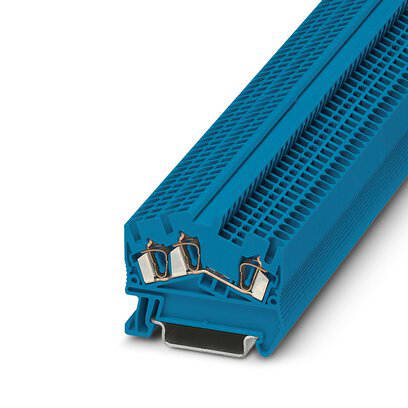

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, 1 level, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: Same shape and pitch as the feed-through terminal blocks; Cross connection to adjacent feed-through terminal blocks with the consistent FBS ... plug-in bridge system - Approvals: VDE Zeichengenehmigung; EAC; cULus Recognized; CCA; EAC Ex; IECEx; IECEE CB Scheme; ATEX; DNV GL; RS; KR; CSA; UL Recognized; cUL Recognized
