Phoenix Blocks - PHNX 3037274 ST 1.5-TWIN RD
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179185996528
Catalog Number - 3037274
Color - Red
Country of Origin - Germany
ERP_productname - PHNX 3037274 ST 1.5-TWIN RD
Packaging
1 ea
EAN
Part #
118134
Catalog #
3037274
Commercial reference
3037274
12-Digit UPC:
179185996528
Catalog Number:
3037274
Color:
Red
Country of Origin:
Germany
ERP_productname:
PHNX 3037274 ST 1.5-TWIN RD
Family Brand Name:
Phoenix Contact
Length:
60.5 mm
Widths:
4.2 mm
SoneparProductId:
SKU_US_315885576

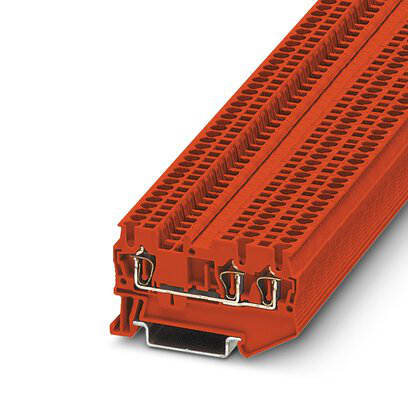

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.08 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: red Features: The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories; User-friendly implementation of all potential branching tasks; Space-saving and practical multi-conductor connection without additional bridges - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
