Phoenix Blocks - PHNX 3038493 STTBS 2 5 BU
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918906899
Catalog Number - 3038493
Country of Origin - Germany
ERP_productname - PHNX 3038493 STTBS 2 5 BU
Family Brand Name - Phoenix Products
Packaging
50 ea
EAN
Part #
223079
Catalog #
3038493
Commercial reference
3038493
12-Digit UPC:
017918906899
Catalog Number:
3038493
Country of Origin:
Germany
ERP_productname:
PHNX 3038493 STTBS 2 5 BU
Family Brand Name:
Phoenix Products
Length:
78 mm
Widths:
5.2 mm
SoneparProductId:
SKU_US_73210357

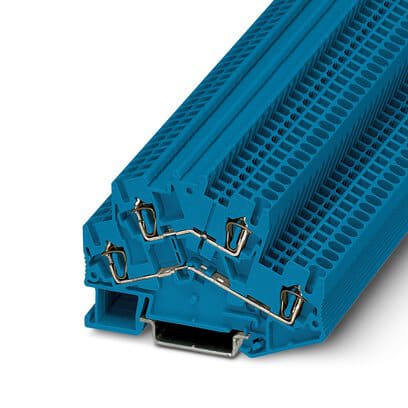

Double-level spring-cage terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: Two large-surface labeling options - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; LR; IECEx; NK; IECEE CB Scheme; ATEX; DNV GL; RS; KR; ABS; CSA; UL Recognized; cUL Recognized
