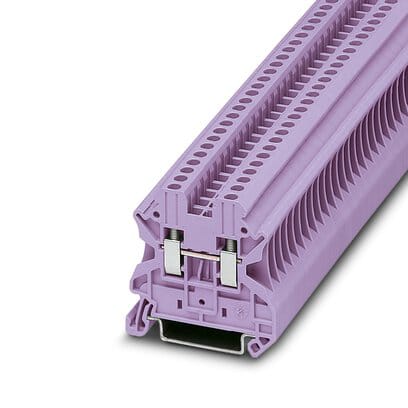

Phoenix Blocks - PHNX 3044078 UT 2 5 VT

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: violet Features: The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section; As well as saving space, the compact design enables user-friendly wiring in a small amount of space; Optimum screwdriver guidance through closed screw shafts; Tested for railway applications; The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section - Approvals: cULus Recognized; EAC Ex; EAC; LR; IECEx; PRS; DNV GL; ATEX; CSA; UL Recognized; cUL Recognized
