Phoenix Blocks - PHNX 3044649 UTTB 2 5 BU
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189970142
Amperage - 24 Amp
Catalog Number - 3044649
Color - Blue
Conductor Size - 0.14 - 4 mm.
Packaging
50 ea
EAN
Part #
176162
Catalog #
3044649
Commercial reference
3044649
12-Digit UPC:
179189970142
Amperage:
24 Amp
Catalog Number:
3044649
Color:
Blue
Conductor Size:
0.14 - 4 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3044649 UTTB 2 5 BU
Family Brand Name:
Phoenix
Length:
69.9 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.5 - 0.6 N-m
Type:
2-Level
Voltage:
500 Volt
Widths:
5.2 mm
SoneparProductId:
SKU_US_72206532

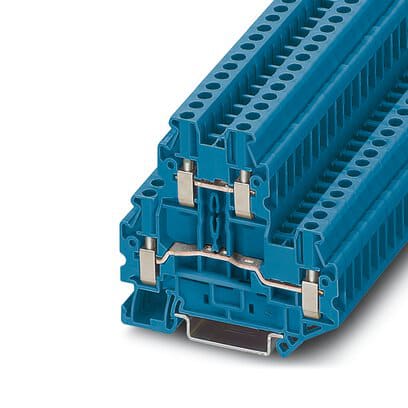

Double-level terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: Since there are two function shafts per level, all potential distribution tasks can be implemented quickly; For a clear overview, each terminal point supports large-surface labeling; As an option, the levels can be connected using the FBS?PV UT vertical bridge; For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks; Tested for railway applications - Approvals: cULus Recognized; EAC; EAC Ex; IECEx; PRS; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
