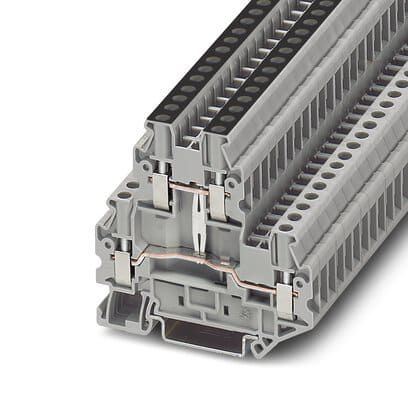

Phoenix Blocks - PHNX 3044652 UTTB 2 5-PV

Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Since there are two function shafts per level, all potential distribution tasks can be implemented quickly; As an option, the levels can be connected using the FBS?PV UT vertical bridge; For a clear overview, each terminal point supports large-surface labeling; For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks; Tested for railway applications - Approvals: cULus Recognized; EAC; EAC Ex; IECEx; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
