Phoenix Blocks - PHNX 3044759 UTTB 4-PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189970838
Catalog Number - 3044759
Color - Green/Yellow
Country of Origin - Germany
ERP_productname - PHNX 3044759 UTTB 4-PE
Packaging
50 ea
EAN
Part #
180294
Catalog #
3044759
Commercial reference
3044759
12-Digit UPC:
179189970838
Catalog Number:
3044759
Color:
Green/Yellow
Country of Origin:
Germany
ERP_productname:
PHNX 3044759 UTTB 4-PE
Family Brand Name:
Phoenix
Length:
69.9 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.6 - 0.8 N-m
Type:
2-Level
Widths:
6.2 mm
SoneparProductId:
SKU_US_58458849

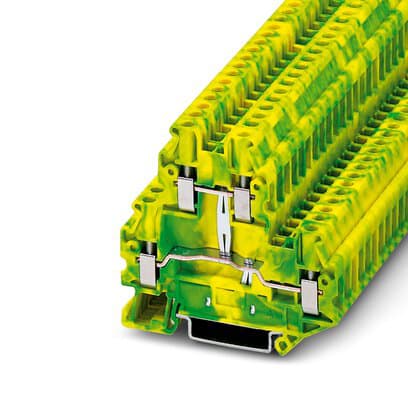

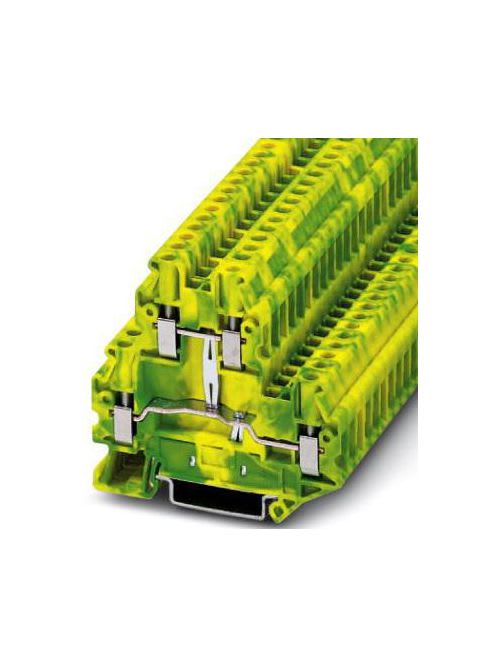

Ground modular terminal block, number of connections: 4, connection method: Screw connection, cross section: 0.14 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: Since there are two function shafts per level, all potential distribution tasks can be implemented quickly; For a clear overview, each terminal point supports large-surface labeling; As an option, the levels can be connected using the FBS?PV UT vertical bridge; Tested for railway applications; For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks - Approvals: cULus Recognized; EAC; EAC Ex; IECEx; PRS; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
