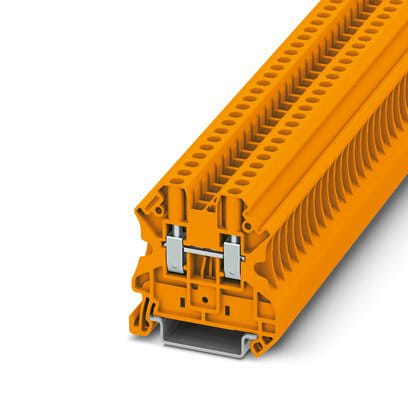

Phoenix Blocks - PHNX 3045101 UT 4 OG

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.14 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: orange Features: The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section; As well as saving space, the compact design enables user-friendly wiring in a small amount of space; Optimum screwdriver guidance through closed screw shafts; The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section - Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
