Phoenix Blocks - PHNX 3046184 UT 4-MTD
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189565928
Amperage - 32 Amp
Catalog Number - 3046184
Color - Gray
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
126842
Catalog #
3046184
Commercial reference
3046184
12-Digit UPC:
179189565928
Amperage:
32 Amp
Catalog Number:
3046184
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3046184 UT 4-MTD
Family Brand Name:
Phoenix
Length:
57.8 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.6 - 0.8 N-m
Type:
Feed-Through
Voltage:
800 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_71776420

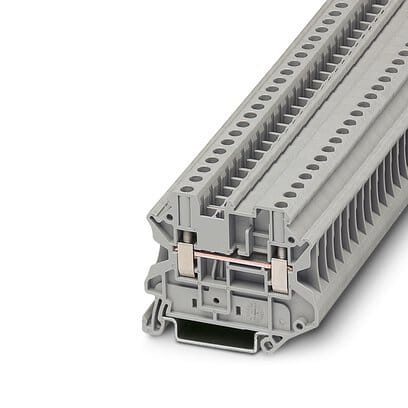

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.14 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The consistent labeling and bridging of terminal blocks is an advantage; Feed-through terminal block enables terminal strips of the same shape to be configured with disconnect and knife disconnect terminal blocks - Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; LR; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
