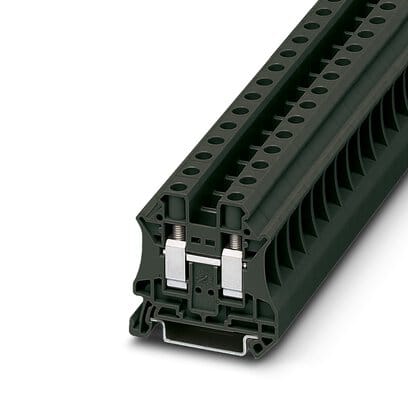

Phoenix Blocks - PHNX 3046320 UT 10 BK
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189756616
Amperage - 76 Amp
Catalog Number - 3046320
Color - Black
Country of Origin - Germany
Packaging
50 ea
EAN
Part #
175385
Catalog #
3046320
Commercial reference
3046320
12-Digit UPC:
179189756616
Amperage:
76 Amp
Catalog Number:
3046320
Color:
Black
Country of Origin:
Germany
ERP_productname:
PHNX 3046320 UT 10 BK
Family Brand Name:
Phoenix
Length:
47.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
1.5 - 1.8 N-m
Type:
Feed-Through
Voltage:
1000 Volt Nominal, 8 kV Surge
Widths:
10.2 mm
SoneparProductId:
SKU_US_73832657
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm., cross section: 0.5 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, color: black Features: The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section; As well as saving space, the compact design enables user-friendly wiring in a small amount of space; Optimum screwdriver guidance through closed screw shafts; The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section - Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
