Phoenix Blocks - PHNX 3046486 UT 6-TG-EX
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463569191976
Catalog Number - 3046486
Color - Gray
ERP_productname - PHNX 3046486 UT 6-TG-EX
Family Brand Name - Phoenix Products
Packaging
50 ea
EAN
Part #
199897
Catalog #
3046486
Commercial reference
3046486
12-Digit UPC:
463569191976
Catalog Number:
3046486
Color:
Gray
ERP_productname:
PHNX 3046486 UT 6-TG-EX
Family Brand Name:
Phoenix Products
Length:
57.8 mm
Mounting Type:
NS 35/7
Widths:
8.2 mm
SoneparProductId:
SKU_US_73521097

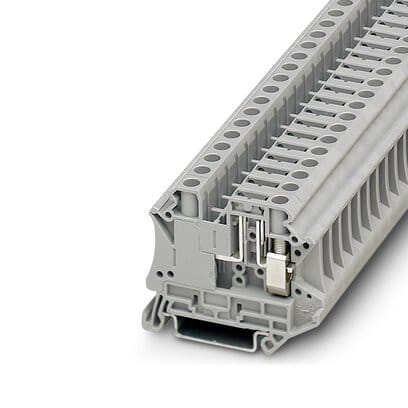

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 10 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: Double bridge shaft enables individual potential distribution and supply; Suitable for process technology, thanks to Ex nA approval; Compact design and high current carrying capacity of 20 A - Approvals: cULus Recognized; EAC; IECEx; CSA; UL Recognized; cUL Recognized
