Essential specifications
12-Digit UPC - 179189763096
Catalog Number - 3048399
Country of Origin - Germany
ERP_productname - PHNX 3048399 UK 10.3-HESILED N 690
Family Brand Name - Phoenix Products
Packaging
1 ea
EAN
Part #
210410
Catalog #
3048399
Commercial reference
3048399
12-Digit UPC:
179189763096
Catalog Number:
3048399
Country of Origin:
Germany
ERP_productname:
PHNX 3048399 UK 10.3-HESILED N 690
Family Brand Name:
Phoenix Products
Length:
86.7 mm
Widths:
18 mm
SoneparProductId:
SKU_US_71776432

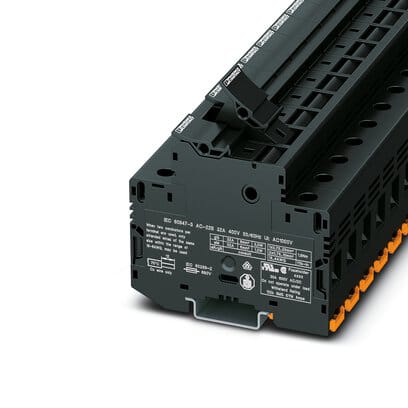

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: 10:3 x 38 mm, nom. voltage: 690 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 16 mm., cross section: 1.5 mm.- 25 mm., mounting type: NS 35/7,5, NS 35/15, color: black Features: Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator; For 10 x 38 fuse-links in accordance with IEC 60269-2; Fuse holder for fuses up to 690 V AC; Easy to bridge; For 10 x 38 gPV fuse-links in accordance with IEC 60269-2; Fuse holder for 110 V ... 600 V AC fuses - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
