Phoenix Blocks - PHNX 3048632 UK 10 3-CC HESILED N 600 3POL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356116021
Catalog Number - 3048632
Country of Origin - Germany
Current - 30 Amp
ERP_productname - PHNX 3048632 UK 10 3-CC HESILED N 600 3POL
Packaging
3 ea
EAN
Part #
100793
Catalog #
3048632
Commercial reference
3048632
12-Digit UPC:
046356116021
Catalog Number:
3048632
Country of Origin:
Germany
Current:
30 Amp
ERP_productname:
PHNX 3048632 UK 10 3-CC HESILED N 600 3POL
Family Brand Name:
Phoenix Products
Length:
81 mm
Widths:
54 mm
SoneparProductId:
SKU_US_73211885

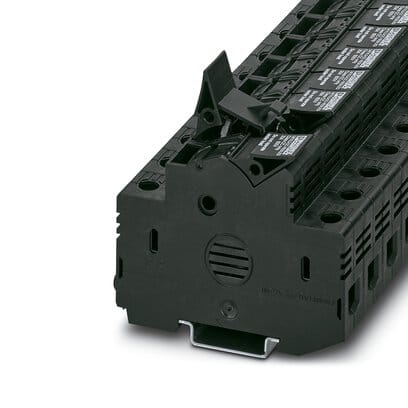

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: Class CC, nom. voltage: 600 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 25 mm., cross section: 1.5 mm.- 25 mm., mounting type: NS 35/7,5, NS 35/15, color: black Features: Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator; For 10 x 38 CC fuse-links in accordance with UL 4248-4; Fuse holder for fuses up to 600 V; Easy to bridge; 3-pos. blocked version - Approvals: cULus Listed; EAC; CSA; UL Listed; cUL Listed
