Phoenix Blocks - PHNX 3050015 QTCU 1 5
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918975722
Catalog Number - 3050015
Color - Gray
Country of Origin - China
ERP_productname - PHNX 3050015 QTCU 1 5
Packaging
50 ea
EAN
Part #
178419
Catalog #
3050015
Commercial reference
3050015
12-Digit UPC:
017918975722
Catalog Number:
3050015
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3050015 QTCU 1 5
Family Brand Name:
Phoenix Products
Length:
58.8 mm
Mounting Type:
NS 35/7
Widths:
5.2 mm
SoneparProductId:
SKU_US_73211822

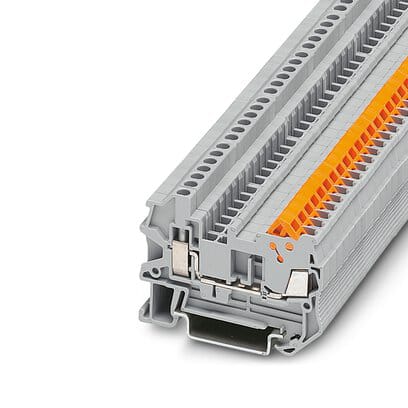

Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, 1 level, connection method: Quick connection, Rated cross section: 1.5 mm., cross section: 0.25 mm. - 1.5 mm., connection method: Screw connection, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 4 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: The hybrid versions combine the advantages of the different connection technologies; The time-saving QUICKON fast connection is used on the control cabinet side; The screw connection is used on the connection side - Approvals: EAC; cULus Recognized; EAC Ex; IECEx; DNV GL; ATEX; CSA; UL Recognized; cUL Recognized
