Essential specifications
12-Digit UPC - 179189757606
Catalog Number - 3050057
Country of Origin - China
ERP_productname - PHNX 3050057 QTCU 15-TWIN BU
Family Brand Name - Phoenix Products
Packaging
1 ea
EAN
Part #
145729
Catalog #
3050057
Commercial reference
3050057
12-Digit UPC:
179189757606
Catalog Number:
3050057
Country of Origin:
China
ERP_productname:
PHNX 3050057 QTCU 15-TWIN BU
Family Brand Name:
Phoenix Products
Length:
76.4 mm
Mounting Type:
NS 35/7
Widths:
5.2 mm
SoneparProductId:
SKU_US_73854993

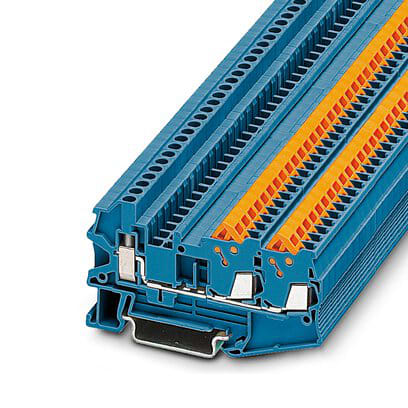

Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, 1 level, connection method: Quick connection, Rated cross section: 1.5 mm., cross section: 0.25 mm. - 1.5 mm., connection method: Screw connection, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 4 mm., mounting: NS 35/7,5, NS 35/15, color: blue Features: The time-saving QUICKON fast connection is used on the control cabinet side; The hybrid versions combine the advantages of the different connection technologies; The screw connection is used on the connection side - Approvals: cULus Recognized; EAC Ex; EAC; IECEx; DNV GL; ATEX; CSA; UL Recognized; cUL Recognized
