Phoenix Blocks - PHNX 3050303 QTCU 25 TWIN
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463560561440
Catalog Number - 3050303
Color - Gray
Country of Origin - China
ERP_productname - PHNX 3050303 QTCU 25 TWIN
Packaging
50 ea
EAN
Part #
139989
Catalog #
3050303
Commercial reference
3050303
12-Digit UPC:
463560561440
Catalog Number:
3050303
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3050303 QTCU 25 TWIN
Family Brand Name:
Phoenix Products
Length:
82.5 mm
Mounting Type:
NS 35/7
Widths:
6.2 mm
SoneparProductId:
SKU_US_73940380

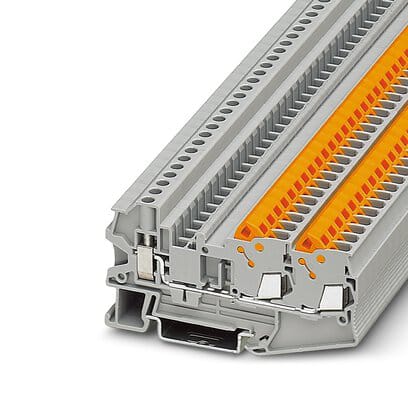

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, 1 level, connection method: Quick connection, Rated cross section: 2.5 mm., cross section: 0.5 mm. - 2.5 mm., connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 6 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: The hybrid versions combine the advantages of the different connection technologies; The time-saving QUICKON fast connection is used on the control cabinet side; The screw connection is used on the connection side - Approvals: BV; EAC; cULus Recognized; EAC Ex; LR; IECEx; NK; DNV GL; ATEX; ABS; UL Recognized; cUL Recognized
