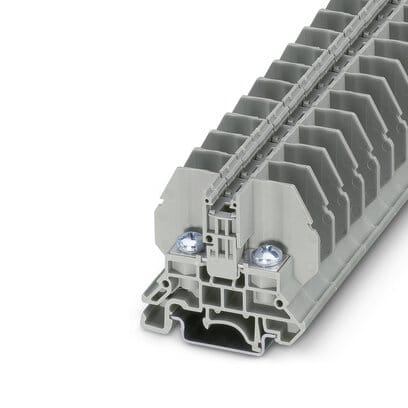

Phoenix Blocks - PHNX 3058143 RSC 5

Feed-through terminal block with bolt connection method, cross section: 0.1 - 10 mm., AWG: 26 - 8, width 13 mm, color: gray Features: Mounting on standard DIN rails or directly in control boxes; Large-surface, consistent external and center labeling; Compact screw connection of ring and fork-type cable lugs; Screw nuts and current bars are latched in the insulating housing and cannot be removed; Cover profile that can be snapped directly onto the terminal blocks provides touch-proof protection; Bridge shaft for potential distribution using standard screw bridges; The isolator bridge bar supports switchable cross connections; the bridge screw therefore has the function of a live contact - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC; IECEE CB Scheme; UL Recognized; cUL Recognized
