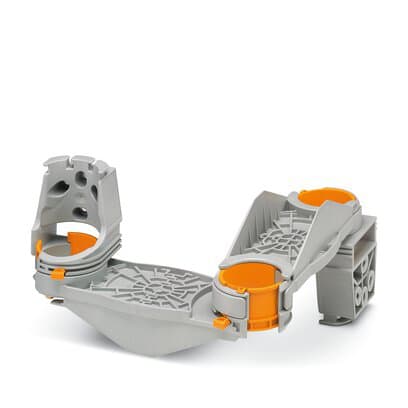

Phoenix Blocks - PHNX 3071401 CGSA 50

Cable routing system, with swivel joint for opening, length: 218 mm, width: 68 mm, height: 140.5 mm, diameter: 42 mm, color: gray Features: Subsequent wiring is easy, thanks to swivel joint openings that can be operated without tools; Easily plan cable harnesses: the cable length is predefined through the swivel arm; Integrated flanges with strain relief make assembly quick and easy; Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools; Route pre-assembled cables and conductors easily, thanks to the patent-pending swivel joint; High-grade elastic and mechanically resilient plastic, certified according to UL 94 for flammability rating: V0; Cable routing for the control cabinet door can be planned in the CAD system, thanks to the defined installation space and swivel range - Approvals: VDE Zeichengenehmigung
