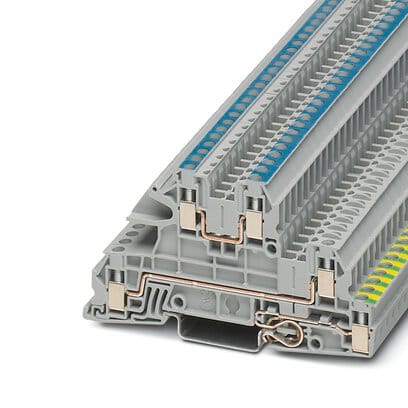

Phoenix Blocks - PHNX 3076030 UTI 2 5-PE/L/N
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463566440060
Catalog Number - 3076030
Color - Gray
Country of Origin - Germany
ERP_productname - PHNX 3076030 UTI 2 5-PE/L/N
Packaging
1 ea
EAN
Part #
180055
Catalog #
3076030
Commercial reference
3076030
12-Digit UPC:
463566440060
Catalog Number:
3076030
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3076030 UTI 2 5-PE/L/N
Family Brand Name:
Phoenix Products
Heights:
51.2 mm
Length:
93.5 mm
Widths:
5.2 mm
SoneparProductId:
SKU_US_130550608
Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks; The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC; IECEE CB Scheme; CSA; UL Recognized; cUL Recognized
