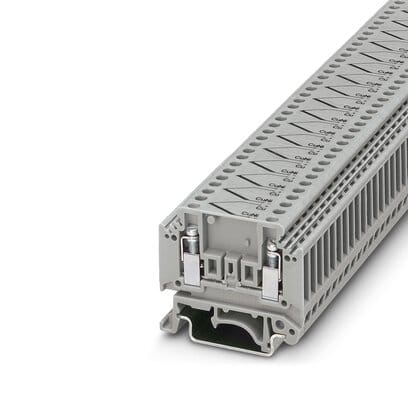

Phoenix Blocks - PHNX 3100062 MTKD-NICR/NI

Thermoelectric voltage terminal block pair, TC type K, nom. voltage: 400 V, nominal current: 1 A, connection method: Screw connection, 1 level, cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: These special terminal blocks are used to extend thermocouple equalizing conductors in corresponding measuring circuits; This ensures that no false thermoelectric voltages result at the junctions of the thermocouple/terminal block/equalizing conductor and that the basic values according to EN 60584/DIN EN 60584 are observed; The equalizing conductors are made from materials which, up to temperatures of 200±C, have the same thermal characteristics as the corresponding thermocouples - Approvals: EAC; cULus Recognized; UL Recognized; cUL Recognized
