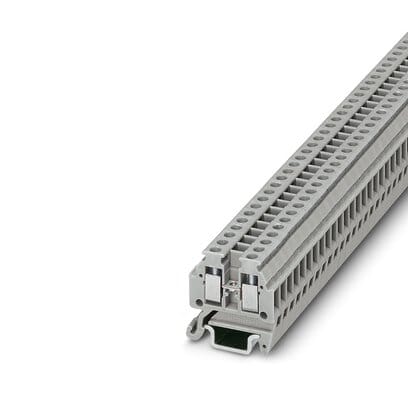

Phoenix Blocks - PHNX 3100305 MT 1 5

Micro terminal, nom. voltage: 400 V, nominal current: 17.5 A, connection method: Screw connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 15, color: gray Features: Nominal cross section of 1.5 mm²; Design width of just 4.2 mm; Space saving thanks to compact design and mounting option on a 15 mm DIN rail; Clear arrangement thanks to marking of all terminal points; Snap-on foot for NS 15 DIN rails; Easy potential distribution thanks to standardized screw bridges in the terminal center - Approvals: BV; CCA; EAC; EAC Ex; LR; DNV GL; ATEX; CSA; UL Recognized
