Phoenix Blocks - PHNX 3101016 MTK
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180925738
Amperage - 16 Amp
Catalog Number - 3101016
Color - Gray
ERP_productname - PHNX 3101016 MTK
Packaging
50 ea
EAN
Part #
179257
Catalog #
3101016
Commercial reference
3101016
12-Digit UPC:
179180925738
Amperage:
16 Amp
Catalog Number:
3101016
Color:
Gray
ERP_productname:
PHNX 3101016 MTK
Family Brand Name:
Phoenix Products
Length:
46 mm
Mounting Type:
NS 35/7
Number of Poles:
2 Pole
Voltage:
400 Volt Nominal, 6 kV Surge
Widths:
5.2 mm
SoneparProductId:
SKU_US_73331424

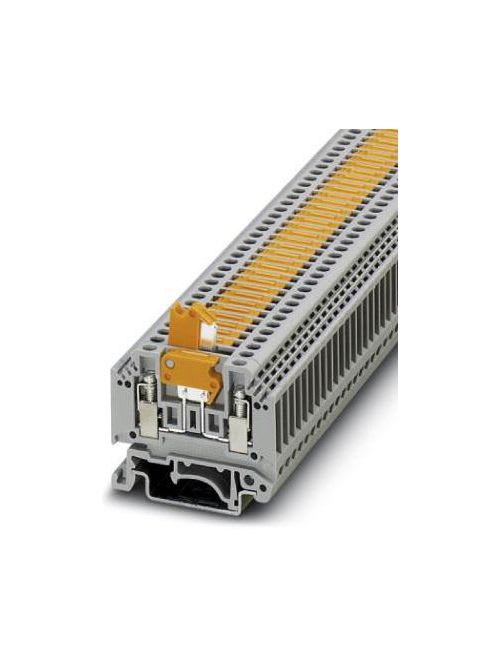

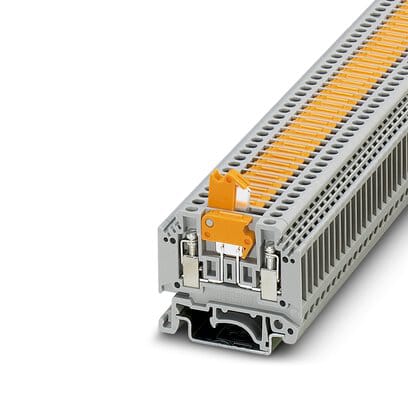

Knife disconnect terminal block, nom. voltage: 400 V, nominal current: 16 A, 1 level, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 4 mm., mounting: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Space-saving design; High current carrying capacity of up to 16 A - Approvals: EAC; cULus Recognized; DNV GL; RS; CSA; UL Recognized; cUL Recognized
