Phoenix Blocks - PHNX 3205022 QTC 1 5 BU
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918932426
Amperage - 17.5 Amp
Applications - For Railway Industry, Machine Building, Plant Engineering, Process Industry
Catalog Number - 3205022
Color - Blue
Packaging
50 ea
EAN
Part #
147340
Catalog #
3205022
Commercial reference
3205022
12-Digit UPC:
017918932426
Amperage:
17.5 Amp
Applications:
For Railway Industry, Machine Building, Plant Engineering, Process Industry
Catalog Number:
3205022
Color:
Blue
Conductor Size:
24-16 AWG
Country of Origin:
China
ERP_productname:
PHNX 3205022 QTC 1 5 BU
Family Brand Name:
Phoenix
Length:
58.8 mm
Type:
1-Row
Voltage:
800 Volt
Widths:
5.2 mm
SoneparProductId:
SKU_US_315958045

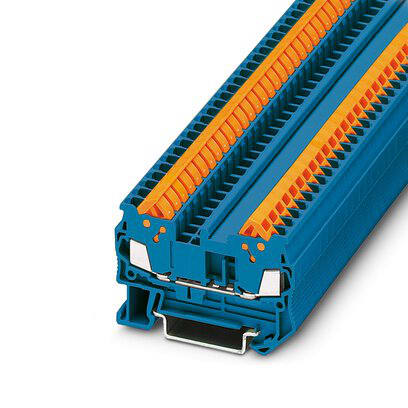

Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.25 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: compact design; Tested for railway applications - Approvals: BV; EAC; cULus Recognized; EAC Ex; LR; IECEx; NK; DNV GL; ATEX; ABS; CSA; UL Recognized; cUL Recognized
