Phoenix Blocks - PHNX 3206555 QTCU 2 5-PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463560577380
Catalog Number - 3206555
Color - Green,Yellow
Country of Origin - China
ERP_productname - PHNX 3206555 QTCU 2 5-PE
Packaging
50 ea
EAN
Part #
203866
Catalog #
3206555
Commercial reference
3206555
12-Digit UPC:
463560577380
Catalog Number:
3206555
Color:
Green,Yellow
Country of Origin:
China
ERP_productname:
PHNX 3206555 QTCU 2 5-PE
Family Brand Name:
Phoenix Contact
Length:
62.6 mm
Mounting Type:
NS 35/7
Widths:
6.2 mm
SoneparProductId:
SKU_US_315778697

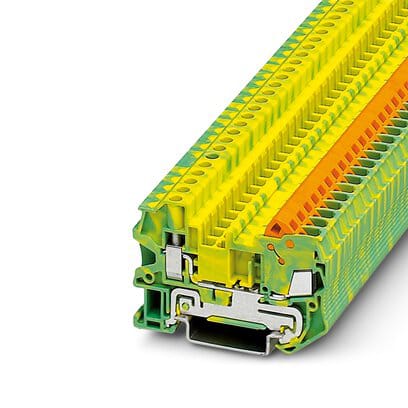

Ground modular terminal block, 1 level, connection method: Quick connection, cross section: 0.5 mm. - 2.5 mm., connection method: Screw connection, cross section: 0.14 mm. - 6 mm., mounting: NS 35/7,5, NS 35/15, color: green-yellow Features: Same shape and pitch as the feed-through terminal blocks; Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail; All the requirements of standard IEC 60947-7-2 are met - Approvals: BV; EAC; cULus Recognized; EAC Ex; LR; IECEx; NK; DNV GL; ATEX; ABS; UL Recognized; cUL Recognized
