Phoenix Blocks - PHNX 3208208 PT 1 5/S-QUATTRO BU

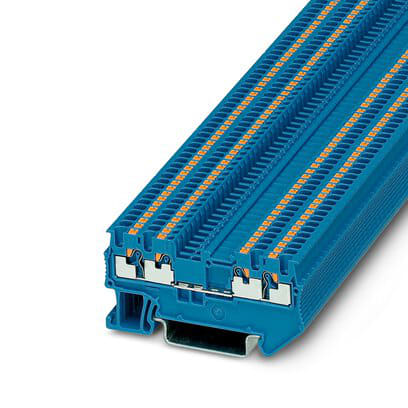

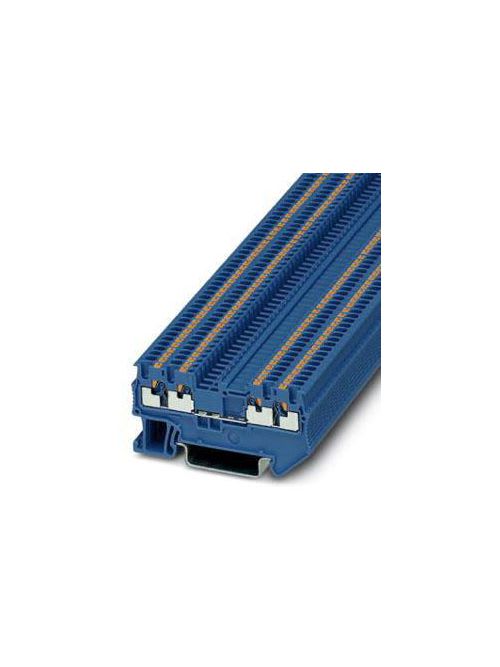

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; IECEx; LR; NK; ATEX; IECEE CB Scheme; DNV GL; ABS; CSA; UL Recognized; cUL Recognized
