Phoenix Blocks - PHNX 3208760 PT 16-TWIN N

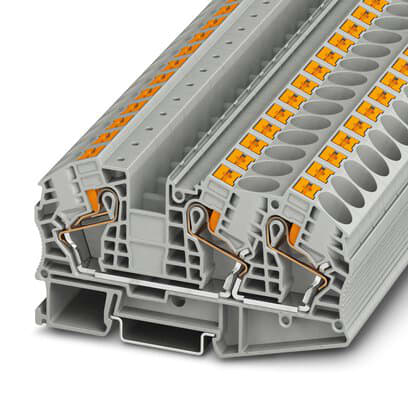

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, connection method: Push-in connection, Rated cross section: 16 mm., cross section: 0.5 mm. - 25 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; IECEx; LR; PRS; ATEX; IECEE CB Scheme; DNV GL; CSA; UL Recognized; cUL Recognized
