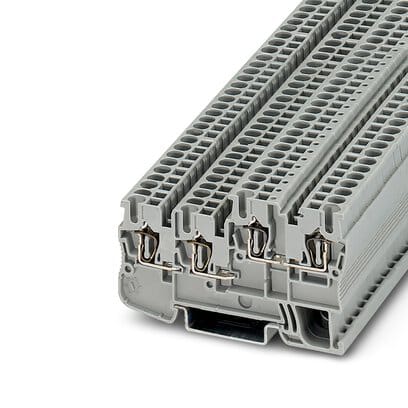

Phoenix Blocks - PHNX 3209015 STIO 25/3-2B/L

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 18 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators; Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes; Versions with LED for indicating the switching states; Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system; Potential is supplied via the STIO-IN power terminal blocks; The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential; For space and time-saving wiring of three-conductor initiators and actuators - Approvals: EAC; cULus Recognized; UL Recognized; cUL Recognized
