Phoenix Blocks - PHNX 3209514 PT 2 5 WH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356681825
Amperage - 24 Amp
Applications - For Railway Industry, Machine Building, Plant Engineering, Process Industry
Catalog Number - 3209514
Color - White
Packaging
1 ea
EAN
Part #
158026
Catalog #
3209514
Commercial reference
3209514
12-Digit UPC:
046356681825
Amperage:
24 Amp
Applications:
For Railway Industry, Machine Building, Plant Engineering, Process Industry
Catalog Number:
3209514
Color:
White
Conductor Size:
26-12 AWG
Country of Origin:
Germany
ERP_productname:
PHNX 3209514 PT 2 5 WH
Family Brand Name:
Phoenix
Length:
48.5 mm
Type:
1-Position, 1-Row
Voltage:
800 Volt
Widths:
5.2 mm
SoneparProductId:
SKU_US_73187790

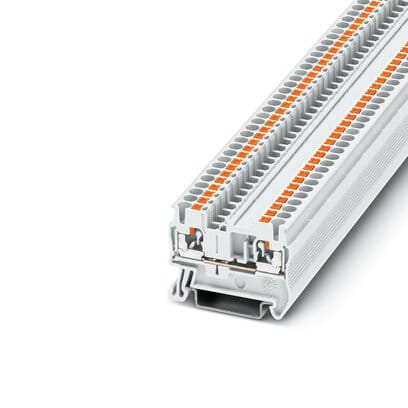

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: white Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; LR; IECEx; NK; IECEE CB Scheme; ATEX; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
