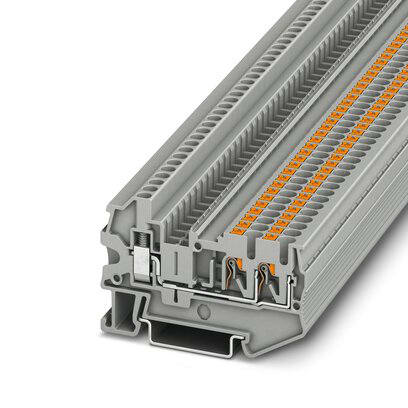

Phoenix Blocks - PHNX 3209515 PTU 2 5-TWIN

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The Push-in TWIN connection is used inside the control cabinet and the universal screw connection is used on the end customer side - Approvals: BV; EAC; LR; DNV GL; CSA; cUL Recognized
