Phoenix Blocks - PHNX 3209553 PT 2 5-TWIN YE

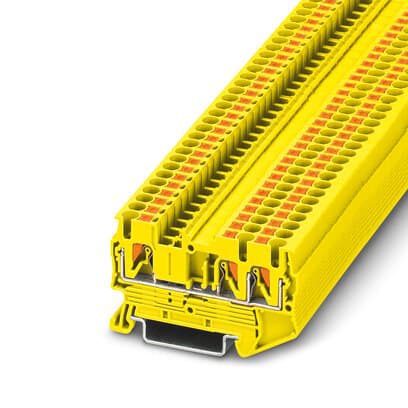

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: yellow Features: The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; Tested for railway applications - Approvals: BV; cULus Recognized; EAC Ex; EAC; LR; IECEx; NK; ATEX; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
