Phoenix Blocks - PHNX 3210033 PT 2 5/1P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356333413
Amperage - 24 Amp
Applications - For Railway Industry, Machine Building, Plant Engineering
Catalog Number - 3210033
Color - Gray
Packaging
50 ea
EAN
Part #
215112
Catalog #
3210033
Commercial reference
3210033
12-Digit UPC:
046356333413
Amperage:
24 Amp
Applications:
For Railway Industry, Machine Building, Plant Engineering
Catalog Number:
3210033
Color:
Gray
Conductor Size:
26-12 AWG
Country of Origin:
Germany
ERP_productname:
PHNX 3210033 PT 2 5/1P
Family Brand Name:
Phoenix
Heights:
35.3 mm
Length:
48.5 mm
Type:
1-Row
Voltage:
500 Volt
Widths:
5.2 mm
SoneparProductId:
SKU_US_315807548

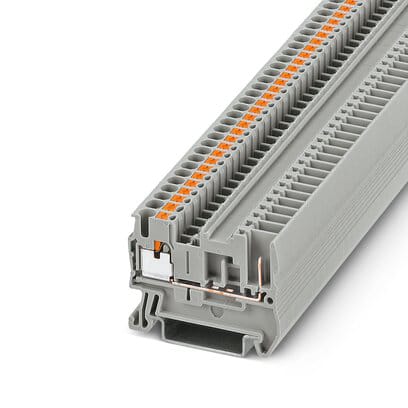

Feed-through terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in / plug connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; cULus Recognized; EAC; LR; NK; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
