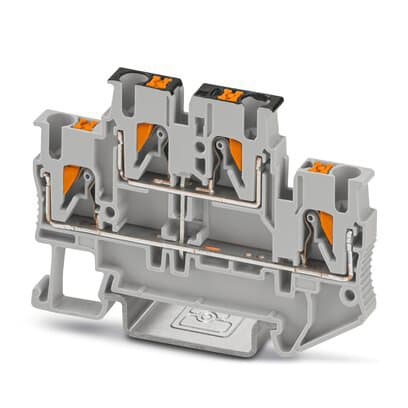

Phoenix Blocks - PHNX 3210583 PTTB 2 5-PV

Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 22 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; LR; IECEx; NK; IECEE CB Scheme; ATEX; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
