Phoenix Blocks - PHNX 3211498 PT 6-TWIN-PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564960706
Catalog Number - 3211498
Color - Green,Yellow
Country of Origin - China
ERP_productname - PHNX 3211498 PT 6-TWIN-PE
Packaging
50 ea
EAN
Part #
196966
Catalog #
3211498
Commercial reference
3211498
12-Digit UPC:
463564960706
Catalog Number:
3211498
Color:
Green,Yellow
Country of Origin:
China
ERP_productname:
PHNX 3211498 PT 6-TWIN-PE
Family Brand Name:
Phoenix Products
Heights:
42.2 mm
Length:
74.2 mm
Widths:
8.2 mm
SoneparProductId:
SKU_US_73042342

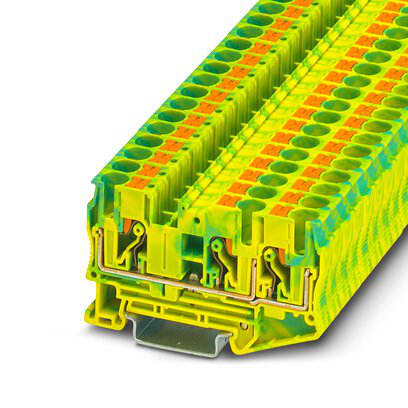

Ground modular terminal block, number of connections: 3, connection method: Push-in connection, cross section: 0.5 mm. - 10 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; IECEx; LR; PRS; NK; ATEX; IECEE CB Scheme; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
