Phoenix Blocks - PHNX 3211766 PT 4-PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564826156
Amperage - 38 Amp
Catalog Number - 3211766
Color - Green/Yellow
Conductor Size - 0.2 - 6 mm.
Packaging
1 ea
EAN
Part #
217737
Catalog #
3211766
Commercial reference
3211766
12-Digit UPC:
463564826156
Amperage:
38 Amp
Catalog Number:
3211766
Color:
Green/Yellow
Conductor Size:
0.2 - 6 mm.
Country of Origin:
China
ERP_productname:
PHNX 3211766 PT 4-PE
Family Brand Name:
Phoenix
Heights:
35.3 mm
Length:
56 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Number of Poles:
2 Pole
Voltage:
8 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_58597143

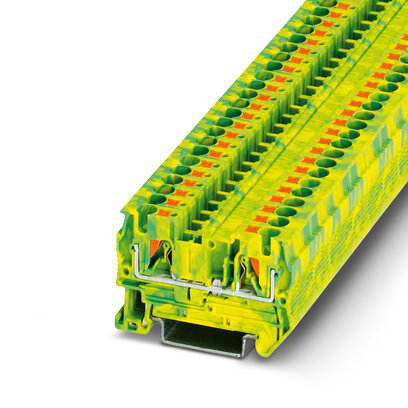

Ground modular terminal block, number of connections: 2, connection method: Push-in connection, cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space ; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC; IECEx; LR; PRS; NK; IECEE CB Scheme; ATEX; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
