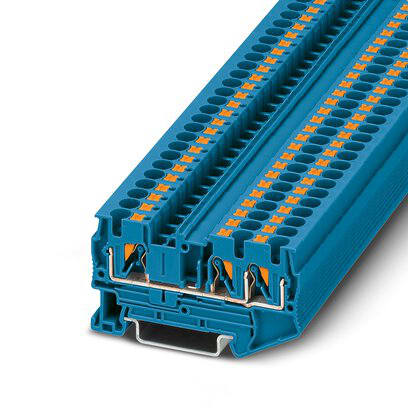

Phoenix Blocks - PHNX 3211775 PT 4-TWIN BU

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 463564826460

  • Amperage - 32 Amp

  • Applications - For Railway Industry, Machine Building, Plant Engineering, Process Industry

  • Catalog Number - 3211775

  • Color - Blue

Packaging

  • 1 ea

EAN

Part #

153304

Catalog #

3211775

Commercial reference

3211775

12-Digit UPC:

463564826460

Amperage:

32 Amp

Applications:

For Railway Industry, Machine Building, Plant Engineering, Process Industry

Catalog Number:

3211775

Color:

Blue

Conductor Size:

24-10 AWG

Country of Origin:

China

ERP_productname:

PHNX 3211775 PT 4-TWIN BU

Family Brand Name:

Phoenix

Length:

66.5 mm

Type:

1-Row

Voltage:

800 Volt

Widths:

6.2 mm

SoneparProductId:

SKU_US_72979452

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Rated cross section: 4 mm., cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; Tested for railway applications - Approvals: BV; VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC; IECEx; LR; PRS; NK; IECEE CB Scheme; ATEX; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
