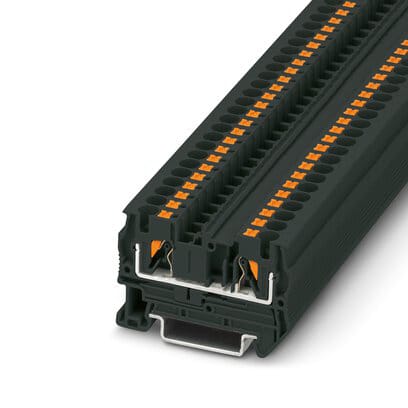

Phoenix Blocks - PHNX 3211776 PT 4 BK
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463568939098
Amperage - 32 Amp
Catalog Number - 3211776
Color - Black
Conductor Size - 0.2 - 6 mm.
Packaging
1 ea
EAN
Part #
127175
Catalog #
3211776
Commercial reference
3211776
12-Digit UPC:
463568939098
Amperage:
32 Amp
Catalog Number:
3211776
Color:
Black
Conductor Size:
0.2 - 6 mm.
Country of Origin:
China
ERP_productname:
PHNX 3211776 PT 4 BK
Family Brand Name:
Phoenix
Heights:
35.3 mm
Length:
56 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Type:
Feed-Through
Voltage:
800 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_73346175
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Rated cross section: 4 mm., cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: black Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space ; Tested for railway applications - Approvals: BV; VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC; IECEx; LR; PRS; NK; IECEE CB Scheme; ATEX; DNV GL; RS; CSA; UL Recognized; cUL Recognized
