Phoenix Blocks - PHNX 3211780 PT 4-TWIN-PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564826224
Catalog Number - 3211780
Color - Green/Yellow
Conductor Size - 0.2 - 6 mm.
Country of Origin - China
Packaging
50 ea
EAN
Part #
113591
Catalog #
3211780
Commercial reference
3211780
12-Digit UPC:
463564826224
Catalog Number:
3211780
Color:
Green/Yellow
Conductor Size:
0.2 - 6 mm.
Country of Origin:
China
ERP_productname:
PHNX 3211780 PT 4-TWIN-PE
Family Brand Name:
Phoenix
Length:
66.5 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Widths:
6.2 mm
SoneparProductId:
SKU_US_73005443

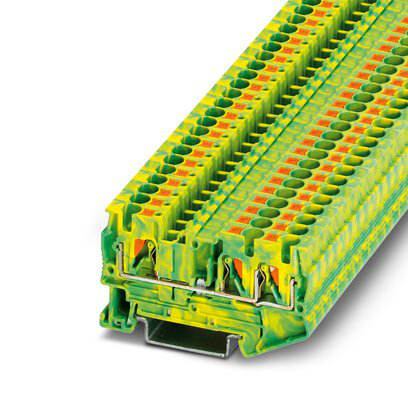

Ground modular terminal block, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm., cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC; IECEx; LR; PRS; NK; IECEE CB Scheme; ATEX; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
